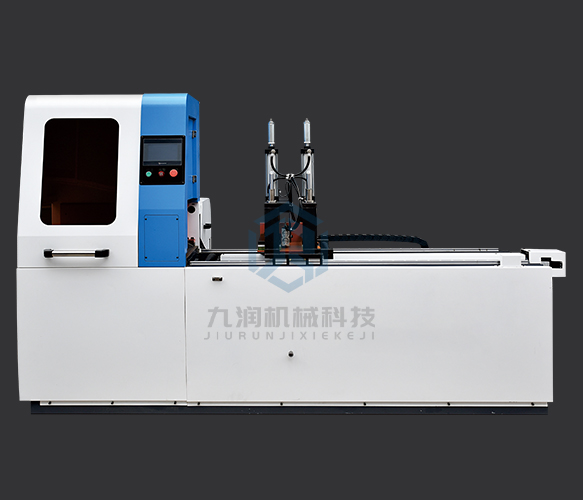

JR-455CNC雙伺服橫切全自動數控鋁切機
機型JR-455CNC伺服全自動鋁切機鋸切角度90°最大鋸切圓管125mm最大鋸切方管110*110mm鋸切圓棒能力110mm主軸轉速3600rpm主電機功率4KW鋸片規格355-455伺服電機功率0.75KW單次送料行程600-700mm送料精度±0.05mm送料速度200mm/s所需空氣氣壓6-8kg/cm2設備尺寸1950*1300*2000mm設備重量1000KGJR-455CNC鋁切機特點：JR-455CNC適
在線詢價
產品詳情
機型Model | JR-455CNC | JR-505CNC | JR-610CNC | JJR-750CNC |
| 主電機功率Cutting motor power | 5.5KW | 5.5KW | 7.5KW | 11KW |
| 主軸轉速Spindle speed | 0-3000rpm | 0-2800rpm | 0-2200rpm | 0-100rpm |
| 鋸片規格Saw blade specifications | φ305-φ455mm | φ355-φ505mm | φ355-φ610mm | φ455-φ710mm |
| 切割角度Cutting angle | 90° | 90° | 90° | 90° |
| 最大鋸切高度Maximum sawing height | 125mm | 155mm | 210mm | 270mm |
| 最大鋸切寬度Maximum sawing width | 360mm | 420mm | 470mm | 550mm |
| 電壓Voltage | 國內380V 50HZ 國外依客戶所需定制Domestic 380V 50HZ, customized according to customer needs overseas | |||
| 切割精度Cutting accuracy | ±0.1mm | ±0.1mm | ±0.1mm | ±0.1mm |
| 所需空壓Required air pressure | 5-8kg/cm2 | 5-8kg/cm2 | 5-8kg/cm2 | 5-8kg/cm2 |
| 送料伺服電機功率Feeding servo motor power | 0.85KW | 1KW | 1.3KW | 1.8KW |
| 進刀伺服電機功率Feed servo motor power | 1.3KW | 1.3KW | 1.3KW | 1.8KW |
| 出、入料架長度Length of infeed and outfeed racks | 依客戶所需定制Customized accordingtocustomer needs | |||
| 吸塵器功率Vacuum cleaner power | 3KW | 4KW | 4KW | 4KW |
| 單次送料最大行程Maximum single feeding stroke | 1000mm | 1000mm | 1000mm | 1200mm |
| 機器尺寸Machine size | 2800*1600*1900mm | 3000*1800*2100mm | 3200*2000*2300mm | 3400*2200*2500mm |
| 重量Weight | 1.35T | 1.6T | 1.8T | 2T |
| 適用材料Applicable materials | 適合鋸切新能源汽車零部件、散熱片、鋁材、銅材、pvc、塑鋼材料、電木板、亞克力塑膠、鐵氟龍、蜂巢板、木板等非鐵金屬材料Suitable for sawing new energy vehicle parts, heat sinks, aluminum, copper, PVc, plastic steel, bakelite, acrylic plastic, PTFEhoneycomb board, wood board and other non-ferrous metal materials | |||
