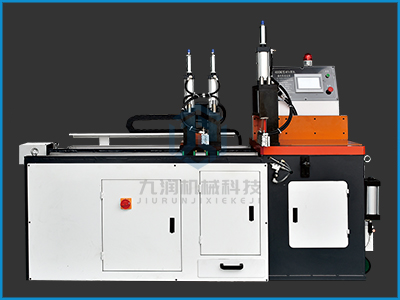

JR-455CNC全自動數控線軌鋁切機
機型ModelJR-455YJR-505YJR-610YJR-850Y主電機功率Cutting motor power4KW5.5KW7.5KW11KW主軸轉速Spindle speed2900rpm2900rpm2200rpm2200rpm鋸片規格Saw blade specificationsφ305-φ455mmφ355-φ505mmφ405-φ610mmφ405-φ850mm切割角度Cutting angle90°90°90°90°最大鋸切高度Maximum sawing height125mm150mm210m
在線詢價
產品詳情
機型Model | JR-455Y | JR-505Y | JR-610Y | JR-850Y |
| 主電機功率Cutting motor power | 4KW | 5.5KW | 7.5KW | 11KW |
| 主軸轉速Spindle speed | 2900rpm | 2900rpm | 2200rpm | 2200rpm |
| 鋸片規格Saw blade specifications | φ305-φ455mm | φ355-φ505mm | φ405-φ610mm | φ405-φ850mm |
| 切割角度Cutting angle | 90° | 90° | 90° | 90° |
| 最大鋸切高度Maximum sawing height | 125mm | 150mm | 210mm | 325mm |
| 最大鋸切寬度Maximum sawing width | 360mm | 480mm | 500mm | 600mm |
| 鋸切能力圓形 | 125mm | 155mm | 210mm | 300mm |
| 鋸切能力方形 | 120*120mm | 145*145mm | 190*190mm | 280*280mm |
| 電壓Voltage | 國內380V 50HZ國外依客戶所需定制Domestic380V 50HZ,customized according to customer needs overseas | |||
| 切割精度Cutting accuracy | ±0.1mm | ±0.1mm | ±0.1mm | ±0.1mm |
| 所需空壓Required air pressure | 5-8kg/cm2 | 5-8kg/cm2 | 5-8kg/cm2 | 5-8kg/cm2 |
| 機器尺寸Machine size | 1500*800*1600mm | 1600*800*1800mm | 1700*1000*1900mm | 1900*1050*2000mm |
| 重量Weight | 0.45T | 0.65T | 0.8T | 1.2T |
| 適用材料Applicable materials | 適合鋸切新能源汽車零部件、散熱片、鋁材、銅材、pvc、塑鋼材料、電木板、亞克力塑膠、鐵氟龍、蜂巢板、木板等非鐵金屬材料 Suitable for sawing new energy vehicle parts, heat sinks, aluminum, copper, PVC, plastic steel, bakelite, acrylic plastic, PTFE honevcomb board, wood board and other non-ferrous metal materials | |||
