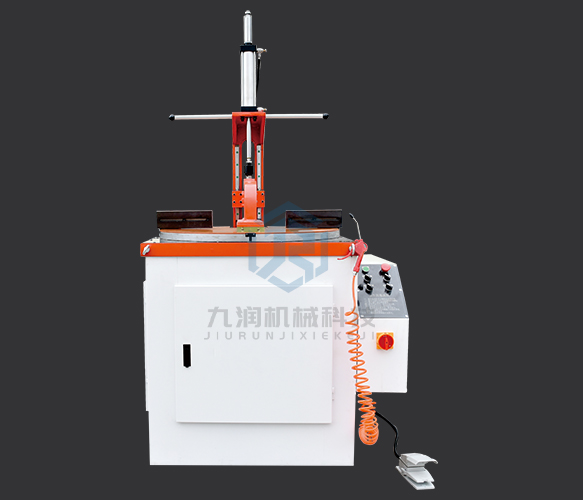

JR-550Q單頭鋸轉角機
隱藏式鋸片，可以安全的上下工作;自動噴油，切面無毛刺，鋸片更耐用;一次可單支或多支鋸切，少量或大批量生產告適宜;解決了傳統機臺鋁屑飛濺的弊病，改善工作環境;夾緊切割的程序都由電氣控制;工作時間可調，夾緊壓力可調;切薄壁材料不變形速度快，這樣大大提高了工作效率
在線詢價
產品詳情
機型Model | JR-550Q | JR-650Q |
| 主電機功率Cutting motor power | 4KW | 5.5KW |
| 鋸片規格Saw blade specifications | φ355-φ505mm 內孔lnner hole25.4mm | φ355-φ650mm 內孔lnner hole25.4mm |
| 主軸轉速Spindle speed | 0-2800rpm | 0-2200rpm |
| 切割角度Cutting angle | 35°-145°以內任意角角度公差0-0.15°Anyangle within35°-145°withatolerance of0-0.15° | |
| 最大鋸切高度Maximum sawing height | 175mm | 225mm |
| 最大鋸切寬度Maximum sawing width | 350mm | 400mm |
| 電壓Voltage | 國內380V50HZ國外依客戶所需定制Domestic380V50HZ,customized according to customer needs overseas | |
| 切割精度Cutting accuracy | ±0.1mm | 140*140mm |
| 所需空壓Required air pressure | 5-8kg/cm2 | 5-8kg/cm2 |
| 機器尺寸Machine size | 1200*1000*2000mm | 1600*1400*2100mm |
| 重量Weight | 0.45T | 0.8T |
| 適用材料Applicable materials | 適合鋸切新能源汽車零部件、散熱片、鋁材、銅材、pv、塑鋼材料、電木板、亞克力塑膠、鐵氣龍、蜂巢板、木板等非鐵金屬材料Suitable for sawing new energy vehicle parts, heat sinks, aluminum, copper, PVc, plastic steel, bakelite, acrylic plastic, PTFEhoneycomb board, wood board and other non-ferrous metal materials | |
